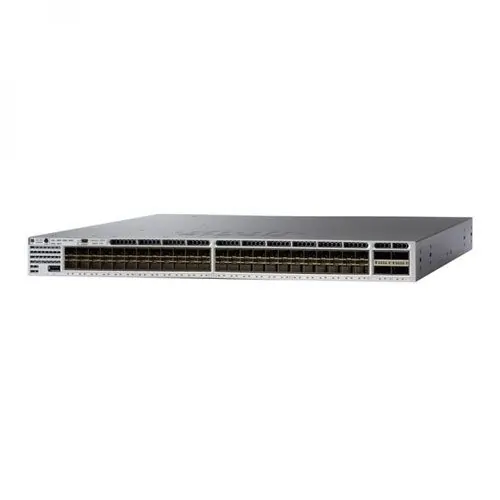

Cisco C1-WSC3850-48XS-S Switch Specifications
General Information:
- Device Type: Managed Layer 3 Switch, 48 ports, stackable
- Enclosure Type: Desktop or rack-mountable (1U)
- Subtype: 10 Gigabit Ethernet
- Ports: 48 x 1/10 Gigabit SFP+ and 4 x 40 Gigabit QSFP+ (uplink)
- Switching Capacity: 1280 Gbps
- Capacity:
- IPv4 Routes: 24,000
- NetFlow Entries: 96,000
- Virtual Interfaces (VLANs): 4,000
- Switched Virtual Interfaces (SVIs): 1,000
- MAC Address Table Size: 32,000 entries
- Jumbo Frame Support: 9,198 bytes
- Routing Protocols Supported: OSPF, BGP-4, IS-IS, RIP-1, RIP-2, EIGRP, IGMP, PIM-SM, and others
- Remote Management Protocols: SNMP (v1, v2c, v3), Telnet, SSH, TFTP, CLI
- Authentication Methods: Kerberos, SSH, RADIUS, TACACS+
- Advanced Features: DHCP support, ARP support, Syslog, MSTP, ACL, QoS, VRF, and more
- Compliance Standards: IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.1p, IEEE 802.3z, and others
- Status Indicators: Power, system status, port transmission speed, and duplex mode
Expansion & Connectivity:
- Interfaces:
- 48 x 10GBase-X SFP+
- 4 x 40Gbit LAN QSFP+ uplink
- 1 x USB Type A
- 1 x Management (mini-USB)
- 1 x Console (RJ-45)
- 1 x Management (Gigabit LAN) RJ-45
- 2 x Network Stack Devices
Power:
- Power Supply: Internal, 750W
- Redundancy: Optional 1+1 power supply
- Voltage: AC 120/230 V (50-60 Hz)
- Airflow: Rear-to-front
Miscellaneous:
- MTBF (Mean Time Between Failures): 286,900 hours
- Compliance Standards: CE, UL, FCC, RoHS, and others
Software & System Requirements:
- Software Included: Cisco IOS IP Base
Dimensions & Weight:
- Width: 17.5 inches
- Depth: 20.1 inches
- Height: 1.8 inches
- Weight: 16.42 lbs
