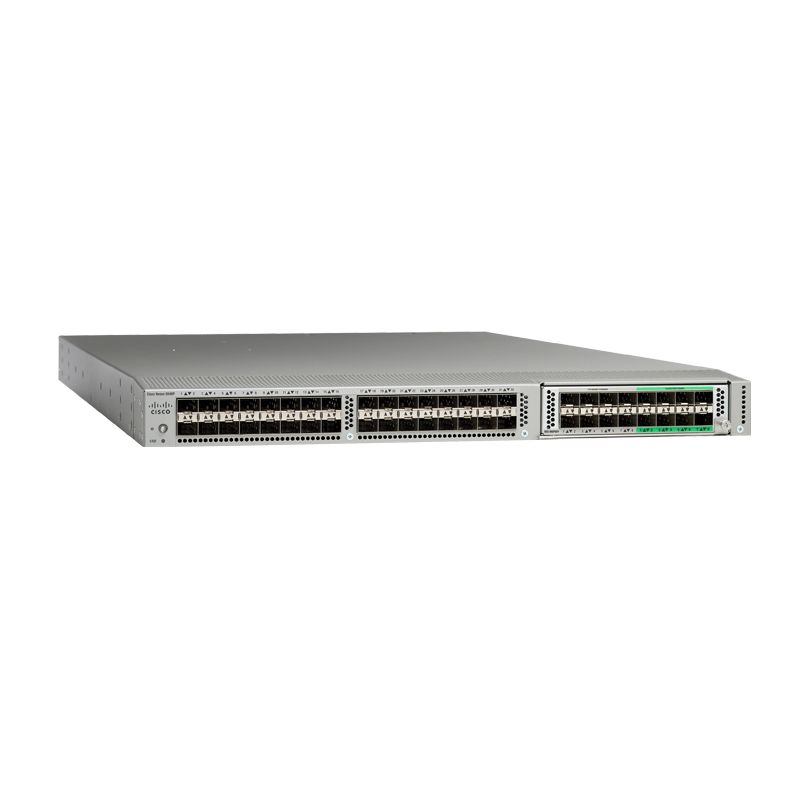

N5K-C5548UP-FA Overview

N5K-C5548UP-FA  is Nexus 5548 UP Chassis, including 32 fixed unified ports, Front-to-Back Airflow, 2 750W AC Power Supplies, Fan Trays, 1 Expansion Slot. Unified ports support traditional Ethernet, Fibre Channel (FC), and Fibre Channel over Ethernet (FCoE).

Table 1 shows the Quick Specs of N5K-C5548UP-FA.

Product Code N5K-C5548UP-FA
Product Type Switch Chassis
Ethernet Technology 10 Gigabit Ethernet
Number of Total Expansion Slots 33
Expansion Slots 1
Expansion Slot Type SFP+
Performance  Layer 2 hardware forwarding at 960 Gbps or 714.24 mpps; Layer 3 performance of up to 160 Gbps or 240 mpps
Form Factor 1RU
Fixed Ports 32 fixed unified ports
Power Supplies 2 x 750W AC Power Supplies
PoE (RJ-45) Port No
Fan Modules 2
Airflow Front-to-back (port-side exhaust) cooling;The Cisco Nexus 5548UP alternatively supports back-to-front (port-side intake) cooling (all fan and power supply modules in the same chassis must support the same direction of airflow)
Manageable Yes
Physical (height x width x depth) 1.72 x 17.3 x 29.5 in. (4.4 x 43.9 x 74.9 cm)
Weightwith two 1100W power supplies, 3 unified port expansion modules, and 4 fan modules 35 lb (15.88 kg)
